A comprehensive example
We end with a comprehensive problem specification and solution.

Introduction

Aims

The aim of this unit is to provide you with a solid understanding of; the organization of Indexed files, the declarations required for them and the Procedure Division verbs used to process them.

Objectives

By the end of this unit you should:

1. Be able to write the Environment Division and Data Division declarations required for a Indexed file.


2. Understand how the primary key and alternate key indexes are organized.


3. Be able to used the use the START, OPEN, CLOSE, READ, WRITE, REWRITE and DELETE Procedure Division verbs required to process Indexed files.


4. Be able to process an Indexed file directly or sequentially.


Prerequisites

You should be familiar with the material covered in the unit;

• Introduction to direct access files

To top of page

A look at some programs that use Indexed files

Example program - Creating an Indexed file

Example program - Reading an Indexed file sequentially

Example program - Reading an Indexed file directly

To top of page

Indexed file organization

Introduction

In the unit "Introduction to direct access files", we showed how an Indexed file is organized and we noted;

• that the records in the Indexed file are held sequenced on ascending primary key and that this allows us to access the file sequentially on that key.
• that over these records the file system builds an index which allows direct access to record using the primary key.
• that an Indexed file may be read sequentially on any of its alternate keys.

While we explained how primary key index of an Indexed file was organized, and how sequential access on the primary key is achieved, we did not explain how the alternate indexes are organized or how the file can be accessed sequentially on any of its alternate keys.

In this section we revisit, and expand on, the explanation of how the primary key index is organized and how it is used to read a record directly. In addition, we show an alternate key index is arranged and we show how this index is used to read the file directly. We also describe how sequential access on the alternate key is achieved.

Primary Key Index

Records in an Indexed file are sequenced on ascending primary key. Over the actual data records, the file system builds the primary key index.

When direct access is required on the primary, the file system uses this index to find, read, insert, update or delete, the required record.

Because the actual data records are arranged on ascending primary key, sequential access on the primary key is achieved by simply reading these data records in sequence.

Alternate Key Index

For each alternate key specified in an Indexed file, an alternate index is built. However, the lowest level of an alternate index does not contain actual data records. Instead, this level made up of base records that contain only the alternate key value and a pointer to where the actual record is. These base records are organized in ascending alternate key order.

Sequential access on an alternate key is achieved by reading the base records one after another in sequence. As each base record is read, its pointer is used to access the actual data record.

While this arrangement means that an Indexed file can be processed sequentially on its alternate keys, reading the file sequentially on an alternate key is slower than on the primary key. This is because alternate key access requires two I-O operations to get the data. The first gets the alternate key base record and the second gets the actual data record.

Animation of the primary and alternate key indexes

To top of page

Indexed file - Declarations

Introduction

As we have seen in the example programs, when Indexed files are used a number of new entries for the SELECT and ASSIGN clause are required.

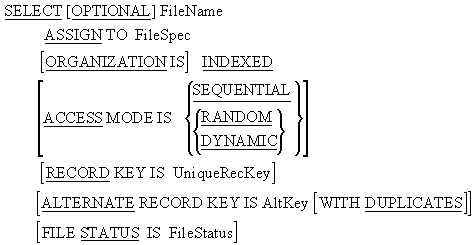

Select and Assign clause syntax

The Record Key phrase

The RECORD KEY phrase defines the Indexed file's primary key.

Every Indexed file must have a primary key. The key must be a field in the record description that contains a unique value for each record.

Contrast this with Relative Files where the key must not be part of the file's record description.

The key field must be a numeric or alphanumeric data item.

The Alternate Record Key phrase

To top of page

Indexed file - file processing verbs

Introduction

The file processing verb used with Indexed files are the same as those used with Relative files.

Indexed files use the same file processing verbs as Relative files (OPEN, CLOSE, READ, WRITE, REWRITE, DELETE and START) but there are some syntactic and semantic differences.

In this section we will only examine those verbs which differ in syntax or semantics from those used with Relative files.

The READ verb

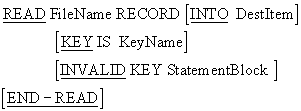

When an Indexed file has an ACCESS MODE of SEQUENTIAL, the format of the READ is the same as for Sequential files, but when the ACCESS MODE is DYNAMIC Sequential processing of the file is complicated by the presence of a number of indexes. The order in which the data records will be read, will depend on which index is being processed sequentially.

Key Of Reference

When an Indexed file has an ACCESS MODE of SEQUENTIAL, the file is always processed in ascending primary key order.

But, if an Indexed file has an ACCESS MODE of DYNAMIC and is processed sequentially, the file system must be able to tell which of the keys to use as the basis for processing the file.

Since the format of the sequential READ does not have a key phrase, the file system refers to a special item called the Key Of Reference to discover which key to use for processing the file.

Before reading a file that has an ACCESS MODE of DYNAMIC sequentially, the programmer must establish one of the file's keys as the Key Of Reference.

A Key Of Reference is established by using the key in a START or a direct READ.

When the file is opened the primary key is, by default, the Key Of Reference.

Reading Sequentially

Notes
This format is used when the ACCESS MODE is DYNAMIC and we wish to read the file sequentially.

This format will read the file in ascending sequence on the key that has been established as the key of reference.

The READ NEXT will read the logical record pointed to by the next record pointer (This will be the current record if positioned by the START and the next record if positioned by a direct READ).

Operation
To read a record sequentially from an Indexed file that has an ACCESS MODE of DYNAMIC

1. First, if the default is not satisfactory, one of the keys must be established as the Key Of Reference by doing a START or a direct READ using that key.
2. Then the READ must be executed.

Reading using a key

The syntax of the direct READ is the same as that for Relative files but the semantics are somewhat different

Operation
To read a record directly from an Indexed file

1. The key value must be placed in the KeyName data item (the KeyName data item is the area of storage identified as the primary key or one of the alternate keys in the the SELECT and ASSIGN clause).
2. Then the READ must be executed.

When the READ is executed the record with the key value equal to the present value of KeyName will be read.

Notes
If the record does not exist the INVALID KEY clause will activate and the statement block following the clause will be executed.

If the KEY IS clause is omitted, the key used will be the primary key.

When the READ is executed, the key mentioned in the KEY IS phrase will be established as the Key Of Reference.

If there is no KEY IS phrase, the primary key will be established as the Key Of Reference.

If duplicates are allowed, only the first record in a group with duplicates can be read directly. The rest of the duplicates must be read sequentially using the READ NEXT format.

The KEY IS phrase can only be used with Indexed files and it is used because Indexed files may have more than one key.

After the record has been read, the next record pointer points to the next logical record in the file. If the Key Of Reference is the primary key then this record will be an actual data record but if the Key Of Reference is one of the alternate keys then the pointer will point to the next alternate index base record.

The file must have an ACCESS MODE of DYNAMIC or RANDOM.

The file must be opened for I-O or INPUT.

The WRITE, REWRITE and DELETE verbs.

The syntax and semantics of the WRITE, REWRITE and DELETE verbs is the same as that for Relative files with the following exceptions;

• Direct access on an Indexed file for all these verbs is based on the primary key only.
• The REWRITE may not change the value of the primary key but it may change the values of any of the alternate keys.

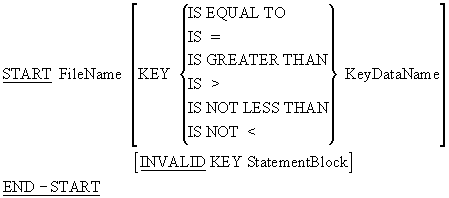

The START verb

In Indexed files, the the START verb is used to control the position of the next record pointer and to establish a key as the Key Of Reference.

Where the START verb appears in a program it is usually followed by a sequential READ or WRITE.

Operation
To establish a key as the Key of Reference and position the Next Record Pointer at a particular record

1. Move the key value to the appropriate key data item. For instance, referring back to the example programs, we might move "Hope and glory" to the VideoTitle if we wanted to establish VideoTitle as the Key Of Reference.
2. Execute the START..KEY IS EQUAL TO

To establish a key as the Key of Reference and position the Next Record Pointer at the first record in that key sequence

1. Move zeros to the the appropriate key data item. For instance we might move spaces to VideoTitle to position the pointer at the first logical record in VideoTitle sequence.
2. Execute the START..KEY IS GREATER THAN

Notes
KeyName is the primary key or one of the alternate keys. It is the key of comparison.

Before the START is executed some value must be moved to the KeyName.

Using the START with some key establishes that key as the Key Of Reference.

The file must be opened for INPUT or I-O when the START is executed.

Execution of the START statement does not change the contents of the record area (i.e. the START does not actually read the record it merely positions the Next Record Pointer).

When the START is executed the Next Record Pointer is set to the first logical record in the file whose key satisfies the condition. If no record satisfies the condition then the INVALID key clause is activated.

To top of page

An Comprehensive Example Program

Program Specification

ROYALTY PAYMENT REPORT PROGRAM.

Introduction
Each time a book is borrowed, the Niklaus Wirth Memorial Library pays the author a small sum of money as royalty. Because the sum owed for each "borrowing" is very small, royalties are only paid once every quarter. Royalties are paid to authors through their agents. Only one cheque per quarter is sent to each agent but to allow him to pay his authors the correct amount, a breakdown of the royalties owed to each author is included with the cheque. A report is required which;

• Shows the amount to be sent to each agent.
• Shows the breakdown of the agent payment into author payments.
• Shows the breakdown of each author payment into royalty payments per book.

The report must be printed in agent name sequence. The sequence of authors within each agent and of books within each author does not matter. The print specification for the report is on the next page.

All the data required to produce the ROYALTY PAYMENT REPORT is contained in two indexed files. The indexed file BOOKS.DAT has the following record description;-

The indexed file AUTHOR.DAT has the following record description;-

Program Procedure
Some fields required in the report do not appear in either of the Indexed files and must be calculated. The following describes these fields and how to calculate them;

BookRoyalty contains the royalty to be paid for a book for the quarter. It is obtained by multiplying QuarterBorrowings by RoyaltyRate. It is a numeric field with up to three places before the decimal point and two places after.

QuarterAuthorBorrows contains the sum of QuarterBorrowings for all of an authors books on loan in the library. It is a numeric field up to four digits long.

AuthorRoyalties is the sum of an author's BookRoyaltys. It is a numeric field with up to four places before the decimal point and two after.

AgentPayment is the sum of an agent's AuthorRoyalties. It is a numeric field with up to six places before the decimal point and two after it.

In addition to producing the report the program must perform a small update on the QuarterBorrowings field of the BOOKS file. When all the calculations involving the QuarterBorrowings field have been done, it must be set to zero so that the borrowings for the new quarter may be accumulated.

Example program

      $ SET SOURCEFORMAT"FREE"
IDENTIFICATION DIVISION.
PROGRAM-ID.   WirthMemLib.
AUTHOR.  Michael Coughlan.

ENVIRONMENT DIVISION.
INPUT-OUTPUT SECTION.
FILE-CONTROL.
    SELECT BookFile ASSIGN TO "BOOKS.DAT"
        ORGANIZATION IS INDEXED
        ACCESS MODE IS DYNAMIC
        RECORD KEY IS BookNumber
        ALTERNATE RECORD KEY IS AuthorNumber
                            WITH DUPLICATES
        FILE STATUS IS BookErrorStatus.

    SELECT AuthorFile ASSIGN TO "AUTHOR.DAT"
        ORGANIZATION IS INDEXED

        ACCESS MODE IS DYNAMIC
        RECORD KEY IS AuthorNum
        ALTERNATE RECORD KEY IS AgentName
                          WITH DUPLICATES
        FILE STATUS IS AuthorErrorStatus.

    SELECT PrintFile ASSIGN TO "REPORT.EXM".


DATA DIVISION.
FILE SECTION.
FD  BookFile.
01  BookRec.
    88 EndOfBookFile     VALUE HIGH-VALUES.
    88 NotEndOfBookFile  VALUE LOW-VALUES.
    02 BookNumber            PIC X(7).
    02 BookName              PIC X(25).
    02 AuthorNumber          PIC 9(7).
    02 RoyaltyRate           PIC V999.
    02 QtrBorrowings         PIC 999.

FD  AuthorFile.
01  AuthorRec.
    88 EndOfAuthorFile   VALUE HIGH-VALUES
    02 AuthorNum             PIC X(7).
    02 AuthorName            PIC X(25).
    02 AgentName             PIC X(25).

FD  PrintFile.
01  PrintLine                PIC X(130).


WORKING-STORAGE SECTION.
01  ErrorStates.
    02  BookErrorStatus      PIC X(2).
        88 RecordAlreadyExists   VALUE "22".
        88 RecordDoesNotExist    VALUE "23".
    02  AuthorErrorStatus    PIC X(2).
        88 RecordAlreadyExists    VALUE "22".
        88 RecordDoesNotExist    VALUE "23".

01  IntermediateVariables.
    02 BookRoyalty           PIC 9(3)V99.
    02 QtrAuthorBorrows      PIC 9(4).
    02 AuthorRoyalties       PIC 9(4)V99.
    02 AgentPayment          PIC 9(6)V99.
    02 PrevAuthor            PIC 9(7).
    02 PrevAgent             PIC X(25).

01  ReportLines.
    02 ReportHeader.
       03 FILLER             PIC X(37) VALUE SPACES.
       03 FILLER             PIC X(24) VALUE "ROYALTY  PAYMENT  REPORT".
    02 Underline.
       03 FILLER             PIC X(36) VALUE SPACES.
       03 FILLER             PIC X(25) VALUE ALL "-".
    02 FieldHeaders.
       03 FILLER             PIC X(9) VALUE SPACES.
       03 FILLER             PIC X(5) VALUE "AGENT".
       03 FILLER             PIC X(21) VALUE SPACES.
       03 FILLER             PIC X(6) VALUE "AUTHOR".
       03 FILLER             PIC X(20) VALUE SPACES.
       03 FILLER             PIC X(4) VALUE "BOOK".
       03 FILLER             PIC X(16) VALUE SPACES.
       03 FILLER             PIC X(7) VALUE "QTR.BRW".
       03 FILLER             PIC X(9) VALUE "  ROYALTY".
    02 BookLine.
       03 AgentNamePrn       PIC X(25).
       03 AuthorNamePrn      PIC BBX(25).
       03 BookNamePrn        PIC BBX(25).
       03 BookQtrBorrowsPrn  PIC BBBBZZ9.
       03 BookRoyaltyPrn     PIC BBBB$$$9.99.
    02 AuthorLines.
       03 QtrBorrowsLine.
          04 FILLER          PIC X(54) VALUE SPACES.
          04 FILLER          PIC X(36) VALUE "QUARTER BORROWINGS FOR THIS AUTHOR =".
          04 QtrBorrowsPrn   PIC BBBBBZ,ZZ9.
       03 QtrRoyaltiesLine.
          04 FILLER          PIC X(54) VALUE SPACES.
          04 FILLER          PIC X(36) VALUE "ROYALTIES OWED TO THIS AUTHOR      =".
          04 QtrRoyaltiesPrn PIC B$$,$$9.99.
    02 AgentLine.
       03 FILLER             PIC X(55) VALUE SPACES.
       03 FILLER             PIC X(33) VALUE "AMOUNT TO BE PAID TO THIS AGENT =".
       03 AgentRoyaltiesPrn  PIC B$$$$,$$9.99.



PROCEDURE DIVISION.
Begin.
    OPEN  I-O  BookFile.
    OPEN  I-O AuthorFile.
    OPEN OUTPUT PrintFile.

    MOVE SPACES TO PrintLine.
    WRITE PrintLine AFTER ADVANCING PAGE.
    WRITE PrintLine FROM ReportHeader AFTER ADVANCING 1  LINE.
    WRITE PrintLine FROM Underline AFTER ADVANCING 1 LINE.
    WRITE PrintLine FROM FieldHeaders AFTER ADVANCING 3 LINES.
    MOVE SPACES TO PrintLine.
    WRITE PrintLine AFTER ADVANCING 1 LINE.

    MOVE SPACES TO AgentName.
    START AuthorFile KEY IS GREATER THAN AgentName
        INVALID KEY DISPLAY "OH DEAR SOMETHING WRONG IN BEGIN PARA"
    END-START.
    READ AuthorFile NEXT RECORD
        AT END SET EndOfAuthorFile TO TRUE
    END-READ.
    PERFORM ProcessAgents UNTIL EndOfAuthorFile.

    CLOSE BookFile.
    CLOSE AuthorFile.
    CLOSE PrintFile.
    STOP RUN.

ProcessAgents.
    MOVE AgentName TO AgentNamePrn, PrevAgent.
    MOVE ZEROS TO AgentPayment.

    PERFORM ProcessAuthors
        UNTIL EndOfAuthorFile
            OR AgentName NOT EQUAL TO PrevAgent.

    MOVE AgentPayment TO AgentRoyaltiesPrn.
    WRITE PrintLine FROM AgentLine AFTER ADVANCING 1 LINE.
    MOVE SPACES TO PrintLine.
    WRITE PrintLine AFTER ADVANCING 2 LINES.

ProcessAuthors.
    MOVE ZEROS TO QtrAuthorBorrows, AuthorRoyalties.
    MOVE AuthorNum TO AuthorNumber, PrevAuthor.
    MOVE AuthorName TO AuthorNamePrn.
    READ BookFile
        KEY IS AuthorNumber
        INVALID KEY
         DISPLAY "ERROR IN ProcessAgents = " BookErrorStatus
    END-READ.
    PERFORM ProcessBooks
        UNTIL EndOfBookFile
            OR AuthorNumber NOT EQUAL TO PrevAuthor.
    SET NotEndOfBookFile TO TRUE.

    MOVE QtrAuthorBorrows TO QtrBorrowsPrn.
    MOVE AuthorRoyalties  TO QtrRoyaltiesPrn.
    WRITE PrintLine FROM QtrBorrowsLine AFTER ADVANCING 2 LINES.
    WRITE PrintLine FROM QtrRoyaltiesLine AFTER ADVANCING 1 LINE.
    MOVE SPACES TO PrintLine.
    WRITE PrintLine AFTER ADVANCING 2 LINES.

    READ AuthorFile NEXT RECORD
        AT END SET EndOfAuthorFile TO TRUE
    END-READ.


ProcessBooks.
    PERFORM ProcessOneBook.
    READ BookFile NEXT RECORD
        AT END SET EndOfBookFile TO TRUE
    END-READ.
    MOVE SPACES TO AuthorNamePrn, AgentNamePrn.

ProcessOneBook.
    MULTIPLY QtrBorrowings BY RoyaltyRate
        GIVING BookRoyalty ROUNDED.
    ADD QtrBorrowings  TO QtrAuthorBorrows.
    ADD BookRoyalty  TO AuthorRoyalties, AgentPayment.
    MOVE BookName TO BookNamePrn.
    MOVE QtrBorrowings TO BookQtrBorrowsPrn.
    MOVE BookRoyalty TO BookRoyaltyPrn.
    WRITE PrintLine FROM BookLine
             AFTER ADVANCING 1 LINE.

    MOVE ZEROS TO QtrBorrowings.
    REWRITE BookRec
        INVALID KEY
        DISPLAY "REWRITE ProcessOneBook " BookErrorStatus
    END-REWRITE.

To top of page

Copyright Notice

These COBOL course materials are the copyright property of Michael Coughlan.

All rights reserved. No part of these course materials may be reproduced in any form or by any means - graphic, electronic, mechanical, photocopying, printing, recording, taping or stored in an information storage and retrieval system - without the written permission of the author.

(c) Michael Coughlan

Last updated : April 1998
mailto:michael.coughlan@ul.ie
