Introduction

Aims

The unit provides a Report Writer reference. The syntax elements of the Report Writer are presented and the semantics of their operation discussed.

Objectives

By the end of this unit you should -

1. Know how to set up a report file in the Environment Division and the File Section.
2. Be able to define a report and the appropriate report groups in the Report Section.
3. Understand how Declaratives may be used to extend the functionality of the Report Writer.
4. Be able to write the Procedure Division code (using the INITIATE, GENERATE and TERMINATE verbs) to create a report.

Prerequisites

You should be familiar with the material covered in the units;

• Sequential files
• Data Declaration
• The Report Writer

Defining the Report - Report File entries

Environment Division entries

Just like ordinary reports, the reports generated by the Report Writer are written to an external device - usually a report file.

The Environment Division entries for a report file are the same as those for an ordinary file. The same Select and Assign clauses apply.

For instance, in the program fragment below, the Select and Assign for the final example program (given in the previous Report Writer unit) is shown.

When the Report Writer generates this report it will be stored in the file SALESREPORT.LPT.

ENVIRONMENT DIVISION.
INPUT-OUTPUT SECTION.
FILE-CONTROL.
    SELECT SalesFile ASSIGN TO "GBPAY.DAT"
           ORGANIZATION IS LINE SEQUENTIAL.
    SELECT PrintFile ASSIGN TO "SALESREPORT.LPT".


DATA DIVISION.
FILE SECTION.
FD  SalesFile.
01  SalesRecord.
    88 EndOfFile  VALUE HIGH-VALUES.
    02 CityCode         PIC 9.
    02 SalesPersonNum   PIC 9.
    02 ValueOfSale      PIC 9(4)V99.

FD  PrintFile
    REPORT IS SalesReport.

    : intervening entries :
    : intervening entries :

REPORT SECTION.
RD  SalesReport
    CONTROLS ARE FINAL
                 CityCode
                 SalesPersonNum
    PAGE LIMIT IS 66
    HEADING 1
    FIRST DETAIL 6
    LAST DETAIL 42
    FOOTING 52.

File Section entries

Although the entries in the Environment Division are the same as those for ordinary print files, in the File Section the normal file description is replaced by phrase which points to the Report Description (RD) in the Report Section. The syntax of the phrase is -

The ReportName must be the same as the ReportName used in the Report Description (RD) entry.

You can see this in the program fragment above where the REPORT IS SalesReport phrase links the PrintFile with the Report Description(RD) in the Report Section.

Notes:

Before the report can be used it must be opened for output. For instance in the example above the PrintFile must be opened for output before the SalesReport can be generated.

Defining the Report - Report Description (RD) Entries

Introduction

Every report generated by the Report Writer must have a Report Description (RD) entry in the Report Section.

The RD entry names the report and specifies the format of the printed page and identifies the control break items.

Each RD entry is followed by one or more 01 level-number entries. Each 01 level-number entry identifies a report group and consists of a hierarchical structure similar to a COBOL record.

Each report group is a unit consisting of one or more print lines and cannot be split across pages.

The Report Description (RD) entries - Syntax

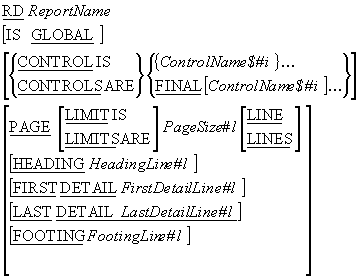

The syntax for the Report Description (RD) entries is shown below -

The Report Description (RD) entries - Semantics

RD Rules

1. The ReportName can only appear in one RD entry.
2. When more than one report is declared in the Report Section the ReportName can be used to qualify the LINE-COUNTER and PAGE-COUNTER report registers.

CONTROL Rules

1. The ControlName$#i must not be defined in the Report Section.
2. Each occurrence of ControlName$#i must identify a different data item.
3. The ControlName$#i must not have a variable length table subordinate to it.
4. ControlName$#i and FINAL specify the levels of the control break hierarchy where FINAL (if specified) is the highest and the first ControlName$#i the next highest and so on.
5. When the value in any ControlName$#i changes a control break occurs. The level of the control break depends on the position of the ControlName$#i in the control break hierarchy.

PAGE Rules

1. HeadingLine#l must be greater than or equal to 1.
2. HeadingLine#l <= FirstDetailLine#l <= LastDetailLine#l <= FootingLine#l <= PageSize#l
3. Line numbers used in a Report Heading or Page Heading group must be greater than or equal to HeadingLine#l and less than FirstDetailLine#l but when a Report Heading appears on a page by itself any line number between HeadingLine#l and PageSize#l may be used.
4. Line numbers used in Detail or Control Heading groups must be in the range FirstDetailLine#l to LastDetailLine#l inclusive.
5. Line numbers used in Control Footing groups must be in the range FirstDetailLine#l FootingLine#l inclusive
6. Line numbers used in the Report Footing or Page Footing groups must be greater than FootingLine#l and less than or equal to PageSize#l but when a Report Footing appears on a page by itself any line number between HeadingLine#l and PageSize#l may be used.
7. All report groups must be defined so that they can be presented on one page. The Report Writer never splits a multi-line group across page boundaries.

Defining the Report - Report Group entries

Introduction

In the Report Section each report group is represented by a report group record. As with all record descriptions in COBOL a report group record starts with level number 01. Subordinate items in the record describe the report lines and columns within the report group.

The description of a report group consists of a number of hierarchic levels. At the top must be the Report Group Definition.

Defining a Report Group Record - Syntax

Report Group Definition

ReportGroupName Rules

The ReportGroupName is required only when the group -

1. is a detail group referenced by a GENERATE statement or the UPON phrase of a SUM clause.
2. is referenced in a USE BEFORE REPORTING sentence in the Declaratives
3. is required to qualify the reference to a sum counter.

The LINE NUMBER clause

The LINE NUMBER clause is used to specify the vertical positioning of print lines. Lines can be printed on -

• a specified line (absolute)
• a specified line on the next page (absolute)
• the current line number plus some increment (relative)

Rules:

1. The LINE NUMBER clause specifies where each line is to be printed so no item that contains a LINE NUMBER clause may contain a subordinate item that also contains a LINE NUMBER clause (subordinate items specify the column items).
2. Where absolute LINE NUMBER clauses are specified all absolute clauses must precede all relative clauses and the line numbers specified in the successive absolute clauses must be in ascending order.
3. The first LINE NUMBER clause specified in a PAGE FOOTING group must be absolute.
4. The NEXT PAGE clause can only appear once in a given report group description and it must be in the first LINE NUMBER clause in the report group.
5. The NEXT PAGE clause cannot appear in any HEADING group.

The NEXT GROUP clause

The NEXT GROUP clause is used to specify the vertical positioning of the start of the next group. The NEXT GROUP clause can be used to specify that the next report groups should be printed on -

• a specified line (absolute)
• the current line number plus some increment (relative)
• the next page

Rules

The NEXT PAGE option in the NEXT GROUP clause must not be specified in a page footing.

The NEXT GROUP clause must not be specified in a REPORT FOOTING or PAGE HEADING group.

When used in a DETAIL group the NEXT GROUP clause refers to the next DETAIL group to be printed.

The TYPE clause

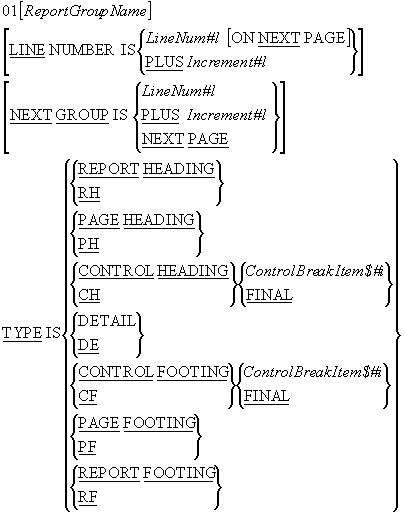

The TYPE clause specifies the type of the report group. The type of the report group governs when and where will be printed in the the report (for instance, a REPORT HEADING group is printed only once - at the beginning of the report).

Rules

Most groups are defined once for each report but control groups (other than CONTROL ..FINAL groups) are defined for each control break item.

In REPORT FOOTING, and CONTROL FOOTING groups, SOURCE and USE clauses must not reference any data item which contains a control break item or is subordinate to a control break item.

PAGE HEADING or FOOTING groups must not reference a control break item or any item subordinate to a control break item.

DETAIL report groups are processed when they are referenced in a GENERATE statement. All other groups are processed automatically by the Report Writer. There can be more than one DETAIL group.

The REPORT HEADING, PAGE HEADING, CONTROL HEADING FINAL, CONTROL FOOTING FINAL, PAGE FOOTING and REPORT FOOTING report groups can each appear only once in the description of a report.

Defining the Report - Lines and Columns

Introduction

The subordinate items in a report group record describe the report lines and columns within the report group. There are two formats for defining items subordinate to the report group record. The first is usually used to define the lines of the report group and the second to define and position the elementary print items.

Defining Report Lines

Print lines in a report group are usually defined using the format shown below. This format is used to specify the vertical placement of a print line and it is always followed by subordinate items that specify the columns where the data items are to be printed.

As shown in the syntax diagram below the level number is from 2 to 48 inclusive.

If the ReportLineName is used its only purpose is to qualify a sum counter reference.

Defining Elementary print items in a report group

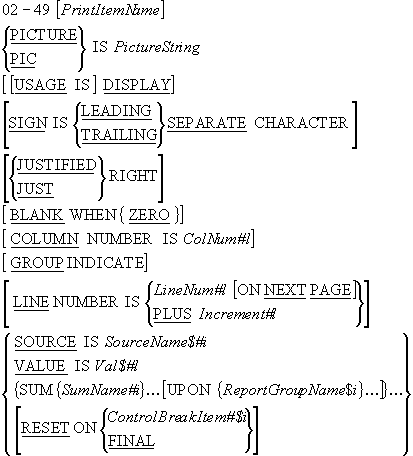

Elementary print items in the print line of a report group are described using the syntactic elements shown in the diagram below.

As we can see from the syntax diagram, the normal data description clauses such as PIC, USAGE, SIGN, JUSTIFIED, BLANK WHEN ZERO and VALUE may be applied when describing an elementary print item. The Report Writer provides a number of additional clauses that may also be used.

The PrintItemName can only be referenced if the entry uses the SUM clause to define a sum counter.

The COLUMN NUMBER clause

The COLUMN NUMBER specifies the position of a print item on the print line. When this clause is used it must be subordinate to an item that contains a LINE NUMBER clause.

Within a given print line the ColNum#l's should be in ascending sequence.

ColNum#l specifies the column number of the leftmost character position of the print item.

The GROUP INDICATE clause

The GROUP INDICATE is used to specify that a print item should be printed only on the first occurrence of its report group after a control break or page advance.

For instance in the full version of the example program the CityName and SalesPersonNum are suppressed after their first occurrence.

01  DetailLine TYPE IS DETAIL.
    02 LINE IS PLUS 1.
       03 COLUMN 1      PIC X(9)
                        SOURCE CityName(CityCode) GROUP INDICATE.
       03 COLUMN 15     PIC 9
                        SOURCE SalesPersonNum  GROUP INDICATE.
       03 COLUMN 25     PIC $$,$$$.99 SOURCE ValueOfSale.

The GROUP INDICATE clause can only appear in a DETAIL report group

The SOURCE clause

The SOURCE clause is used to identify a data item that contains the value to be used when the print-item is printed. For instance, the SOURCE ValueOfSale clause in the example above specifies that the value of the item to be printed in column 25 is to be found in the data-item ValueOfSale.

The SUM clause

The SUM clause is used both to establish a sum counter and to name the data-items to be summed.

Three forms of summing can be done in the Report Writer;

1. Subtotalling
2. Rolling Forward
3. Cross footing

Subtotalling

In Subtotalling, each time a GENERATE statement is executed the value to be summed is added to the sum counter.

Rolling Forward

In Rolling Forward the value accumulated in the sum counter of one group is used as the value to be summed in the sum counter of another group.

The full version of the example program contains a good example of both Subtotalling and Rolling forward. The SUM clause is used to accumulate the ValueOfSale into a sum counter named as SMS (Subtotalling). The SMS sum counter is used as the value to be summed into the CS sum counter and CS is used as the value to be summed into the final total (Rolling Forward).

In the example code fragment below, each time a DETAIL line is GENERATED the ValueOf Sale is added to the SMS sum counter. When a control break occurs on SalesPersonNum the accumulated sum is printed and is added to the CS sum counter. When a control break occurs on the CityCode the sum accumulated in the CS sum counter is added to the final total sum counter.

01  SalesPersonGrp
    TYPE IS CONTROL FOOTING SalesPersonNum  NEXT GROUP PLUS 2.
                      : other entries :
                      : other entries :
       03 SMS COLUMN 45 PIC $$$$$,$$$.99 SUM ValueOfSale.



01  CityGrp TYPE IS CONTROL FOOTING CityCode NEXT GROUP PLUS 2.
                      : other entries :
                      : other entries :
       03 CS COLUMN 45  PIC $$$$$,$$$.99 SUM SMS.



01  TotalSalesGrp TYPE IS CONTROL FOOTING FINAL.
                      : other entries :
                      : other entries :
       03 COLUMN 45     PIC $$$$$,$$$.99 SUM CS.

Cross Footing

In Cross Footing sum counters in the same report group can be added together. In the example below, each time a GENERATE statement is executed the value of the SalesPersonSale is added to the SPS sum counter and the value of CounterSale is added to SCS (Subtotalling). When a control break occurs on ShopNum the values of the SPS and SCS sum counters are added together to give the combined total printed in column 60 (Cross Footing).

01  ShopTotalsGrp
    TYPE IS CONTROL FOOTING ShopNum  NEXT GROUP PLUS 2.
                      : other entries :
                      : other entries :
       03 SPS COLUMN 20 PIC $$$,$$$.99  SUM SalesPersonSale.
       03 SCS COLUMN 40 PIC $$$,$$$.99  SUM CounterSale.
       03     COLUMN 60 PIC $$$$,$$$.99 SUM SPS, SCS.

Rules

1. If the the SUM..UPON ReportGroupName clause is used then the value is only added to the sum counter when the specified report group is printed.
2. A SUM clause can appear only in the description of a CONTROL FOOTING report group.
3. Statements in the Procedure Division can be used to alter the contents of the sum counters.

The RESET ON clause

Sum counters are normally reset to zero after a control break on the control break item associated with the report group but the RESET clause can be used to reset the sum counters on the break of a more senior control item.

Rules

1. The ControlBreakItem#$i must be one of the data items mentioned in the CONTROL/CONTROLS clause in the Report Description.

Special Report Writer registers

Introduction

The LINE-COUNTER register

The reserved word LINE-COUNTER can be used to access a special register that the Report Writer maintains for each report in the Report Section.

The Report Writer uses the LINE-COUNTER register to keep track of where the lines are being printed on the report. It uses this information and the information specified in the PAGE LIMIT clause in the RD entry to decide when a new page is required.

While the LINE-COUNTER register can be used as a SOURCE item in the report no statements in the Procedure Division can alter the value in the register.

References to the LINE-COUNTER register can be qualified by referring to the name of the report given in the RD entry.

The PAGE-COUNTER register

Procedure Division verbs

Introduction

Syntax

INITIATE

The INITIATE statement starts the processing of the ReportName report or reports.

The ReportName must be the name defined for a report in the RD entry in the Report Section.

The INITIATE statement initializes -

• all the report's sum counters to zero
• the report LINE-COUNTER to zero
• the report PAGE-COUNTER to one

Before the INITIATE statement is executed the file associated with the Report must have been opened for OUTPUT or EXTEND.

GENERATE

The GENERATE statement drives the production of the report.

The target of a GENERATE statement is either a DETAIL report group or a Report Name.

When the target is a ReportName then the report description must contain -

• a CONTROL clause
• not more than one DETAIL group
• at least one group that is not a PAGE or REPORT group.

When all the GENERATE statements for a particular report target the ReportName then the report performs summary processing only and the report produced is called a summary report. For instance to make a summary report from the example report all we have to to is to change the GENERATE statement from -

GENERATE DetailLine.

to

GENERATE SalesReport.

If we specify GENERATE SalesReport then the DETAIL group is never printed but the other groups are printed (see the first page of the summary report shown below).

          An example COBOL Report Program
     Bible Salesperson - Sales and Salary Report

 City      Salesperson     Sale
 Name       Number         Value
              Sales for salesperson 1     =      $334.00
              Sales commission is         =       $16.70
              Salesperson salary is       =      $139.70
              Current  salesperson number = 2
              Previous salesperson number = 1


              Sales for salesperson 2     =    $3,667.50
              Sales commission is         =      $183.38
              Salesperson salary is       =      $504.38
              Current  salesperson number = 3
              Previous salesperson number = 2


              Sales for salesperson 3     =      $777.70
              Sales commission is         =       $38.89
              Salesperson salary is       =      $473.89
              Current  salesperson number = 1
              Previous salesperson number = 3

              Sales for Dublin            =    $4,779.20
              Current city                = 2
              Previous city               = 1


              Sales for salesperson 1     =      $334.00
              Sales commission is         =       $16.70
              Salesperson salary is       =      $139.70
              Current  salesperson number = 2
              Previous salesperson number = 1


              Sales for salesperson 2     =    $2,334.00
              Sales commission is         =      $116.70
              Salesperson salary is       =      $458.70
              Current  salesperson number = 3
              Previous salesperson number = 2


              Sales for salesperson 3     =      $222.20
              Sales commission is         =       $11.11
              Salesperson salary is       =      $122.11
              Current  salesperson number = 4
              Previous salesperson number = 3



Programmer - Michael Coughlan               Page :  1



TERMINATE

The TERMINATE statement instructs the Report Writer to complete the processing of the specified report. The Report Writer prints the Page and Report Footings and all the CONTROL FOOTING groups are printed as if there had been a control break on the most senior control group.

After the report has been terminated the file associated with the report must be closed. For instance in the example program the TERMINATE SalesReport statement is followed by the CLOSE PrintFile statement.

Report Writer Declaratives

Introduction

Declaratives are used to extend the functionality of the Report Writer when its standard operations are insufficient of create the desired report. Declaratives extend the functionality of the Report Writer by performing tasks or calculations that the Report Writer can not do automatically or by selectively stopping the report group from being printed (using the SUPPRESS PRINTING command).

When Declaratives are used with the Report Writer the USE BEFORE REPORTING phrase allows a programmer to specify that the particular section of code is to be executed before some report group is printed.

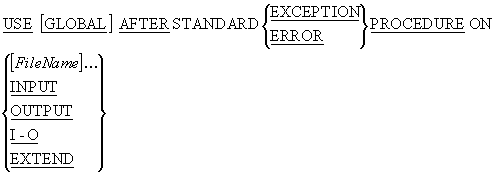

Declaratives may also be used to handle file operation errors. In this case the USE clause should use the following syntax -

Using Declaratives with the Report Writer

When Declaratives are used they must appear as the first item in the Procedure Division.

The Declaratives must be divided into sections and each section must be associated with a particular USE statement.

The USE statement governs when a particular declarative section is executed.

When Declaratives are used with the Report Writer the USE syntax shown below must be used

Rules:

The ReportGroupName must not appear in more than one USE statement.

The GENERATE, INITIATE and TERMINATE statements must not appear in the Declaratives.

The value of any control data items must not be altered in the Declaratives.

Statements in the Declaratives must not reference non-declarative procedures.

Declaratives Example

The SUPPRESS PRINTING statement

The SUPPRESS PRINTING statement is used in a Declarative section to stop a particular report group from being printed.

The report group suppressed is the one mentioned in the USE statement associated with the section containing the SUPPRESS PRINTING statement.

The SUPPRESS PRINTING statement must be executed each time you want to stop the report group from being printed.

In the example below we only want to print the ShopTotalGrp if the sales for the shop are greater than or equal to 10,000.

Control Break Registers
